美國Meriam MFT 4000, 4005, 4010多功能模塊化校準儀通用壓力模
名稱：過程校準儀
品牌：
型號：
簡介：美國Meriam MFT 4000, 4005, 4010多功能模塊化校準儀通用壓力模塊的詳細介紹 Pressure Measurement Module Advantages Calibration coefficients for al...
申請服務
- 產品介紹
美國Meriam MFT 4000, 4005, 4010多功能模塊化校準儀通用壓力模塊的詳細介紹
Pressure Measurement Module Advantages
Calibration coefficients for all modules are stored in non-volatile sensor module memory. This means any pressure module can be used in any Meriam MFT without manual programming of coefficients. When a module is installed and the MFT is powered up, the MFT senses the module bay connection, polls the module for the calibration coefficients and configures the display for pressure readout in the last engineering unit selected. Engineering units, including PSI, centimeters or inches of H2O (at 4°C, 20°C, or 60°F), kg/cm2, kPa, mBars, Bars, millimeters, inches of Hg (at 0°C ref. temp) and oz/in2 are all selectable from the MFT keypad. Meriam sensor modules are designed to be re-calibrated in the field with appropriate local calibration standards. The MFT’s Rcal feature allows customers to adjust zero (offset) and full scale (gain) plus up to seven (7) addition points on the calibration curve. Dead weight testers are generally used to apply a known pressure to a module. The Rcal feature allows the user to key in the applied pressure value, which lets the module know how to correct its calibration curve. Meriam also provides factory re-calibration services for pressure modules including complete documentation and certification
SKU: PModules
Pressure Sensor Modules from Meriam Process Technologies are available in a several types and ranges to provide the ultimate in flexibility and convenience for portable calibration standards. Meriam pressure modules are used with any MFT 4000 Series Multi-Function Tester by installing modules into any of three (3) MFT sensor bays. The modules are completely interchangeable to facilitate most pressure testing needs (restrictions on module installation and removal apply to Intrinsically Safe MFT units). NIST traceable accuracy of ± 0.025% FS is available for most pressure ranges and types. This accuracy statement includes all effects of linearity, hysteresis, repeatability and temperature from 23°F to 122°F (no partial temperature compensation here!). A NIST certificate and calibration data are included with each module for quality assurance purposes.

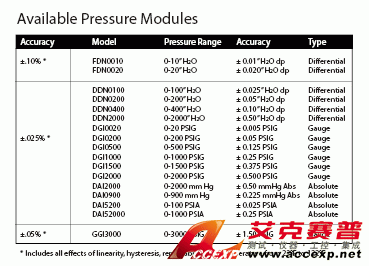

Ordering InformationPressure Modules: See Accuracy Table for Model Numbers
Accessories
ZB34686 961P pressure pump with integral variator, bleed valve, 1/8” FNPT connection, 0 - 145 PSIG
ZB34700 961V vacuum pump with integralvariator, bleed valve, 1/8” FNPT connection, vacuum 0-650 mm Hg
ZA34386 Low Pressure Connector Kit (not for use above 250 PSIG)
ZA34102 1/8” O.D. tubing to 1/8” MNPT connector (not for use above 250 PSIG)
ZA34112 1/8” O.D. tubing union tee (not for use above 250 PSIG)
ZA34099-1 1/4” MNPT x 1/8” FNPT reducer bushing, brass
ZA34103-2 10 ft. of 1/8” O.D. nylon tubing (not for use above 250 PSIG)
ZA36853 Push to read equalizing manifold for DP modules, brass, 1/8” FNPT connections
ZA900020-90502 High Pressure Connection Kit, 3’ hose (not for use above 9,000 PSIG)
ZA900020-90503 High Pressure Connection Kit, 1’ hose (not for use above 9,000 PSIG)
ZA900020-90501 5 pcs 1/4” MNPT x HP Quick Connect Fitting (not for use above 9,000 PSIG)
ZA900436-00001 1 pcs 1/8” MNPT x HP Quick Connect fitting (not for use above 9,000 PSIG)
