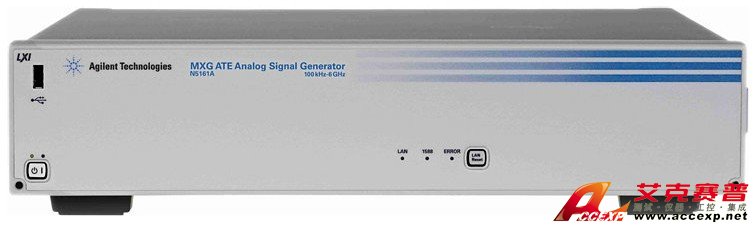

Agilent N5161A MXG ATE模擬信號發生器
名稱：信號發生器
品牌：
型號：
簡介：N5161A MXG ATE Analog Signal Generator 主要特性與技術指標 Signal Characteristics 100 kHz to 3 or 6 GHz +23 dBm @ 1 GHz output pow...
申請服務
- 產品介紹
N5161A MXG ATE Analog Signal Generator
主要特性與技術指標 Signal Characteristics
•100 kHz to 3 or 6 GHz
•+23 dBm @ 1 GHz output power with electronic attenuator over entire range
•≤ -121 dBc/Hz (typ) phase noise at 1 GHz and 20 kHz offset
•≤1.2 ms switching speed in SCPI mode; ≤900 μs simultaneous frequency and amplitude in list mode
Modulation and Sweep
•AM, FM, øM, and pulse
•Digital step and list sweep with simultaneous switching of frequency, power, and waveform
Automation and Communication Interface
•100BaseT LAN, USB 2.0, and GPIB
•LXI class-B compliant
•SCPI and IVI-COM drivers
•Backwards compatible with all ESG, PSG, 8648 signal generators, and other vendors´ signal generators
The last date to order is 31-May-2012. Orders must be booked by 31-May-2012.
Replacement Product:
•N5181A MXG RF Analog Signal Generator
For Highly Cost-sensitive and Demanding ATE Production Environment
The N5161A MXG ATE RF signal generator provides the same industry-leading performance, reliability, and form factor (2RU) of the popular N5181A MXG -- all at a reduced price. This signal generator has been streamlined for automated test equipment (ATE) needs with removal of the front-panel display and all connectors relocated to the rear panel for convenient and secure rack configurations. Combining the outstanding MXG performance with a base price reduction over the N5181A MXG signal generator, makes the N5161A MXG ATE analog signal generator ideally suited for today’s demanding production environment.
Maximize Uptime
Simplified self-maintenance decreases time for repair and performance verification, keeping downtime to less than 2 hours, using field-replaceable assemblies.
